The Gold Standard of Portability and Precision

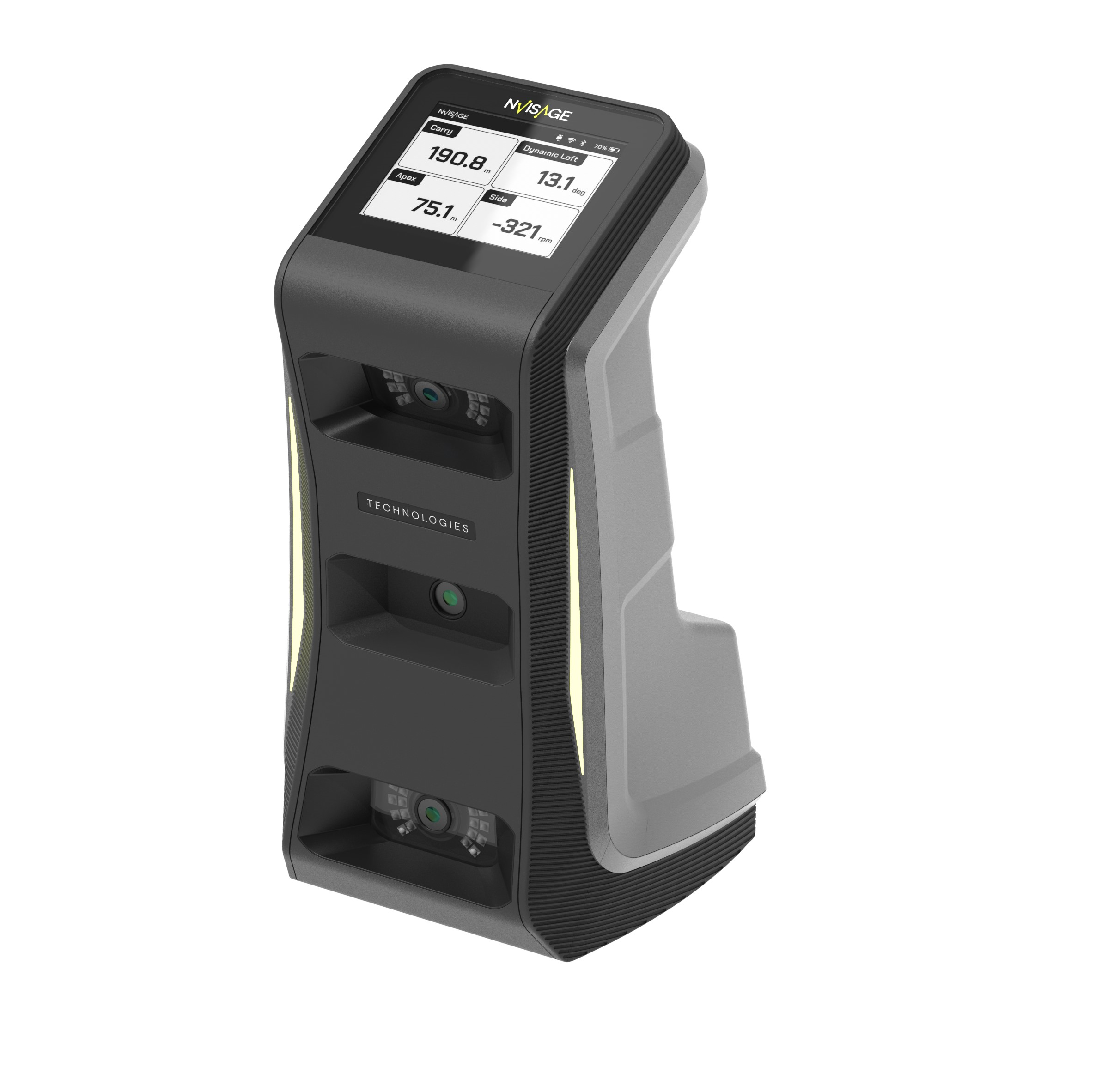

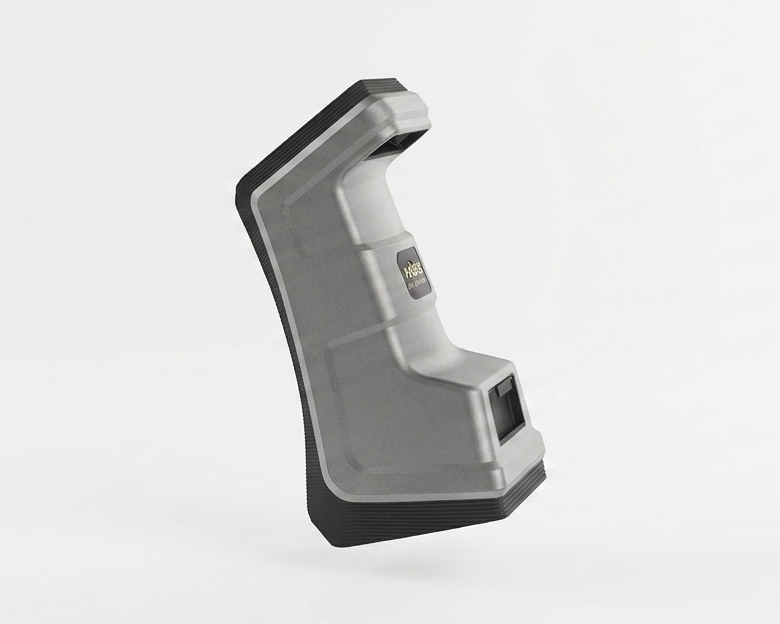

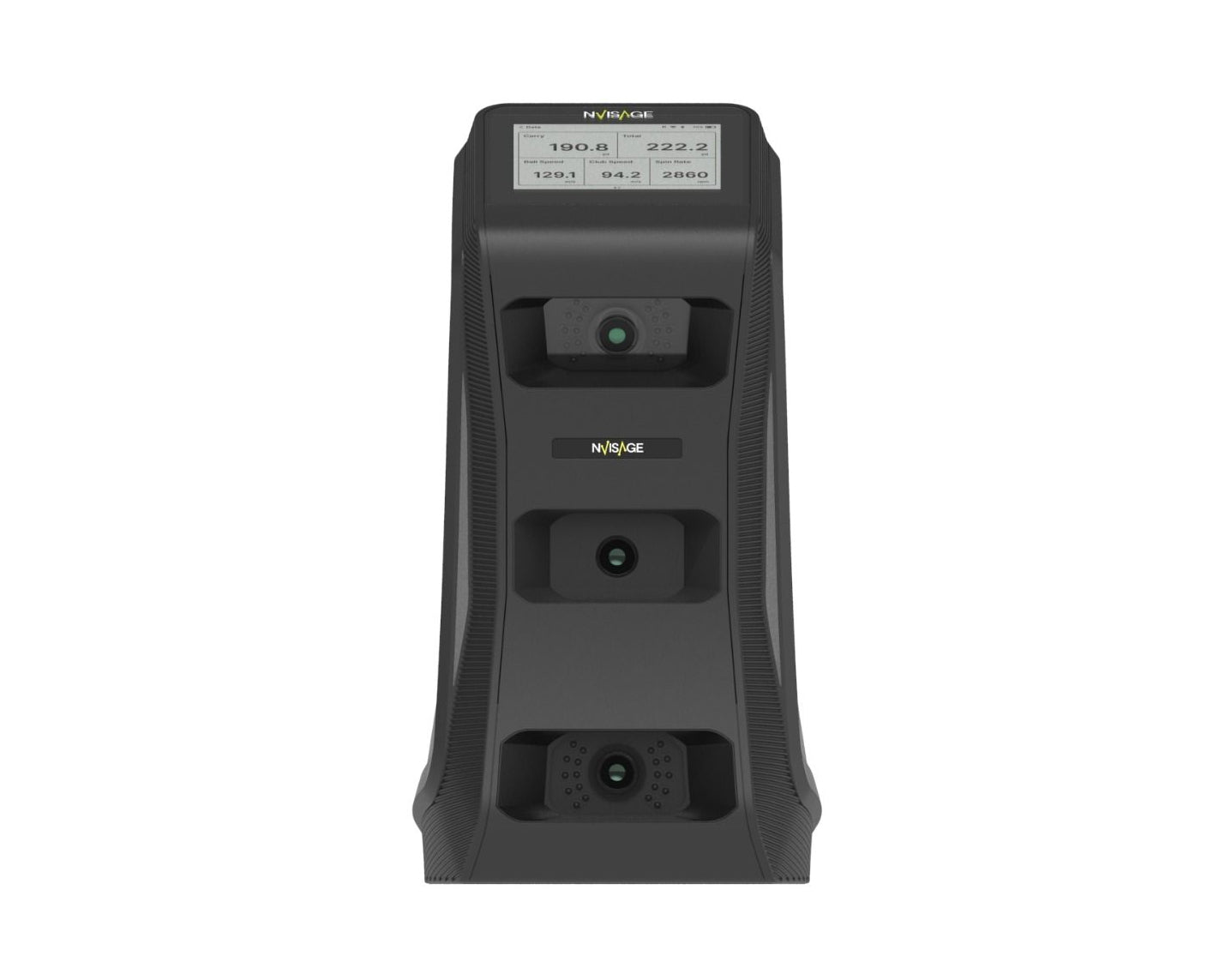

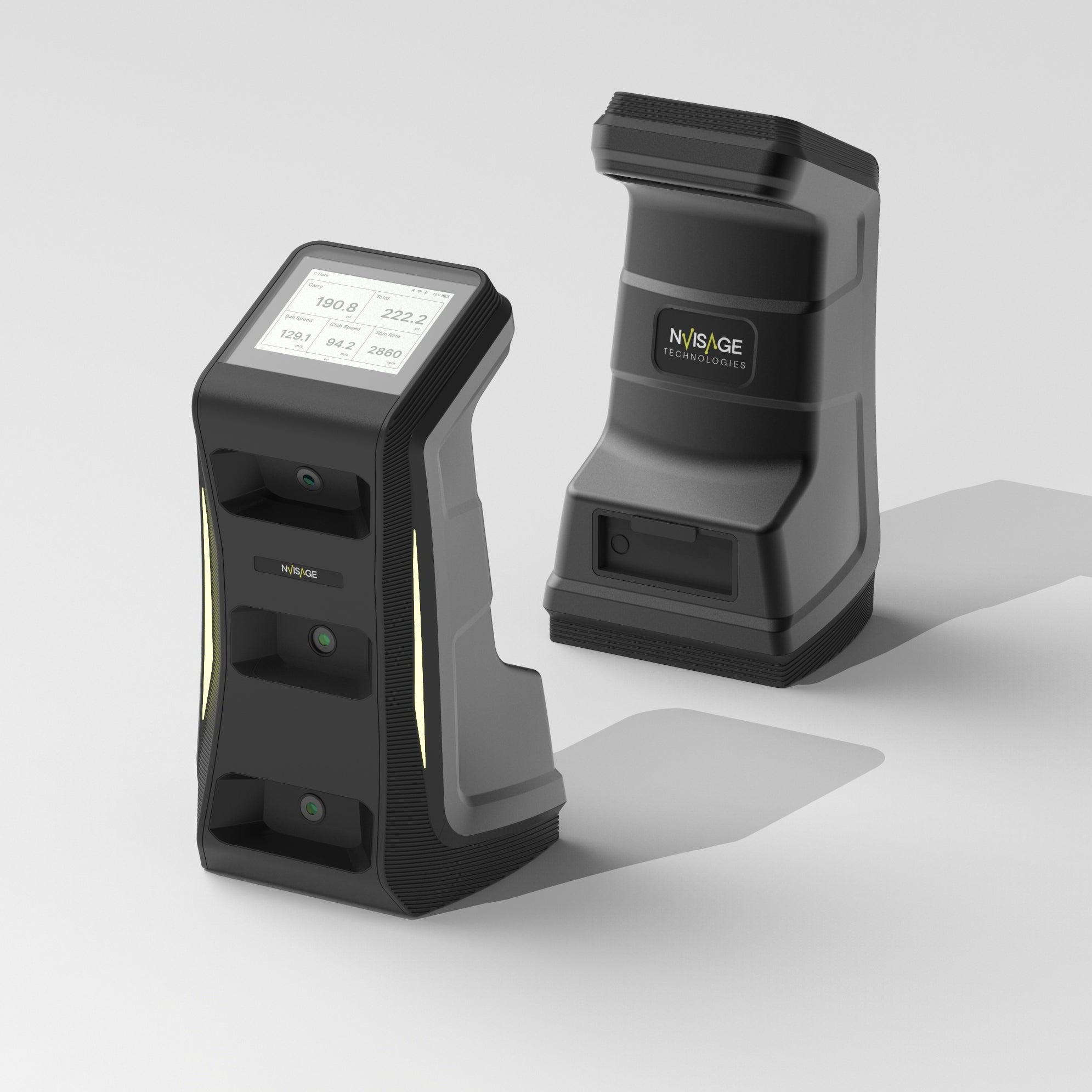

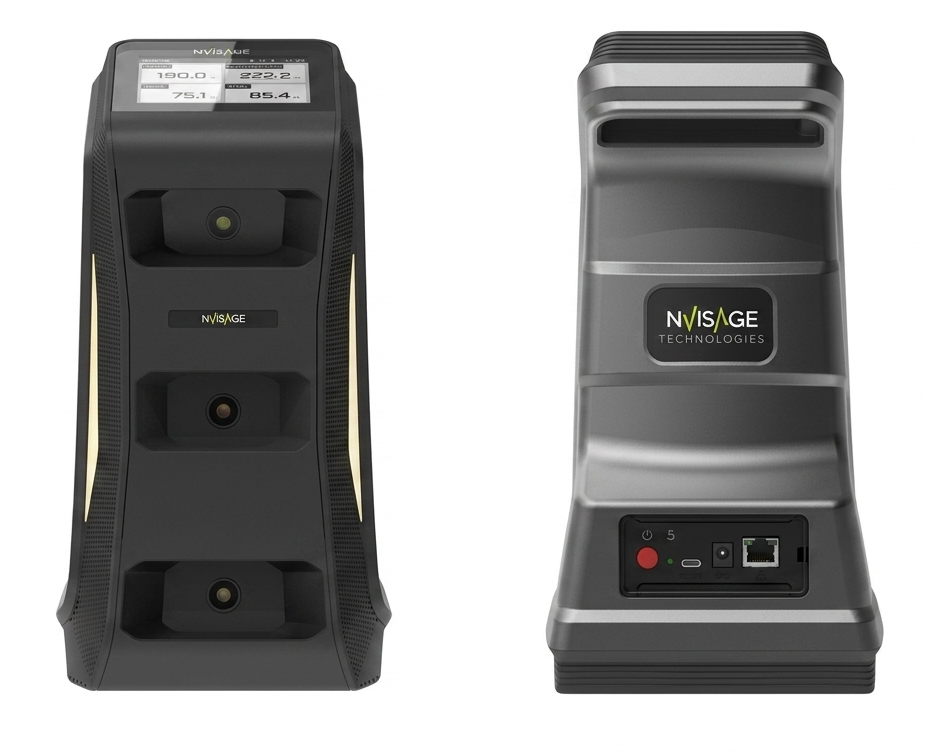

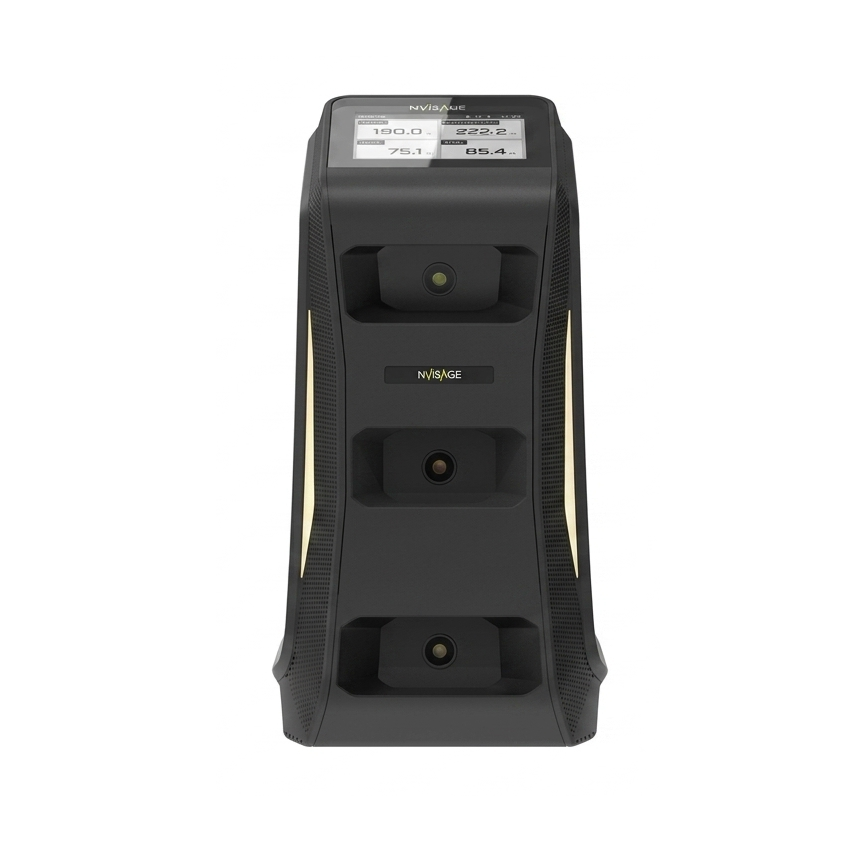

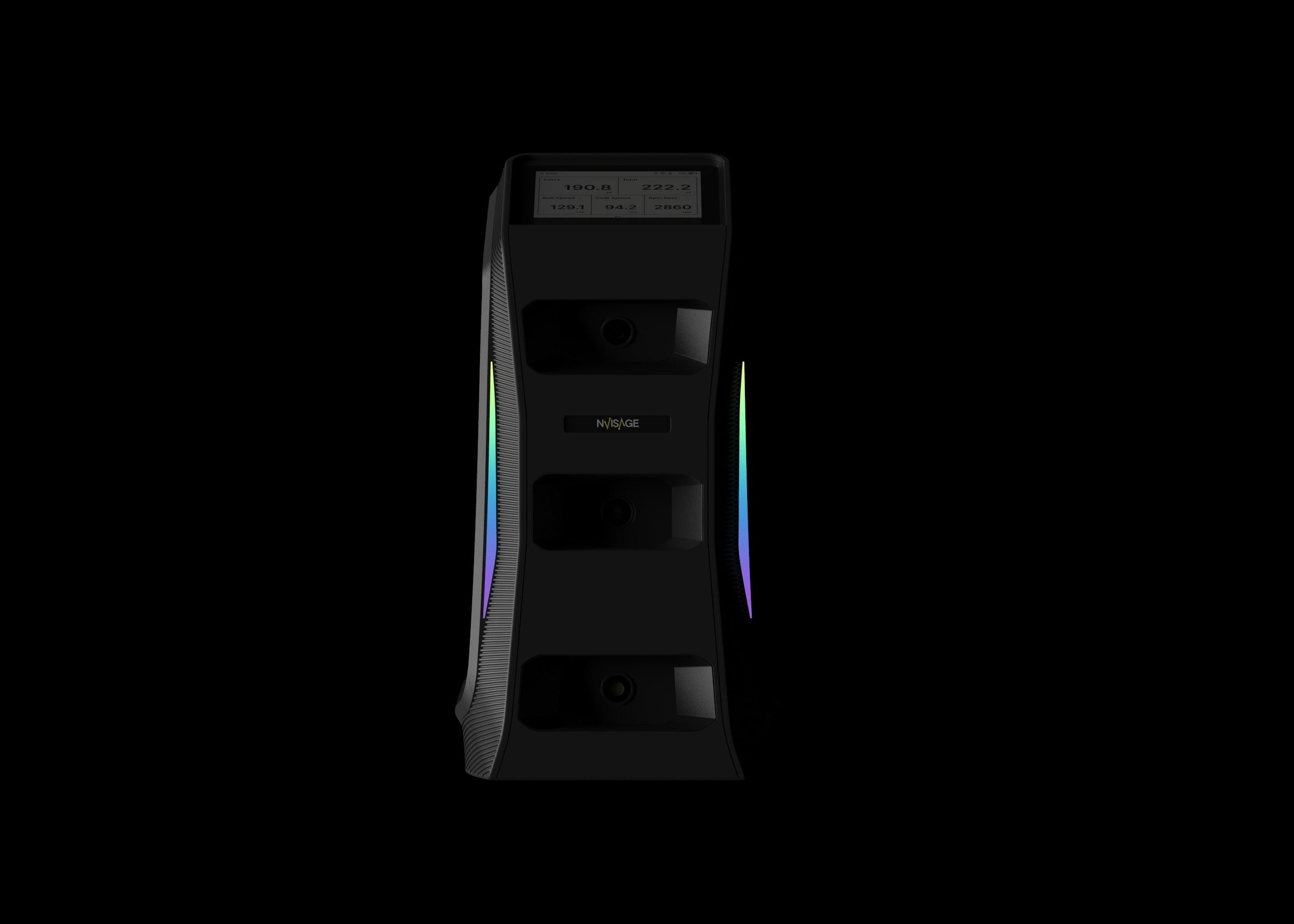

The NEO-E delivers tour-level data and flagship accuracy - comparable to the GCQuad, at a non-premium price point. While competitor units use mathematical algorithms to "guess" data, the NEO-E captures the true physical surface of the golf ball at 6,000 FPS, building a precise, real-time digital twin for unparalleled reliability indoors or out.
Core Innovation & Must-Know Features
-
3D Dimple Analysis (No Marked Balls): Tracks 500+ dimples at 6,000 FPS for tour-grade spin accuracy with all types of golf balls. No special markings or expensive "premium" balls are ever required.
-
IP65 Weatherproof & Rugged: The only launch monitor with a true, certified IP65 rating. Fully sealed against dust, sand, and rain, it is housed in a high-impact urethane shell designed for extreme durability.
-
True Portability & Instant Feedback: Optimized PC processing delivers immediate, sub-500ms data feedback. Moving seamlessly from the home studio to the range, it features a robust 5-hour battery and lightweight, compact design.
Required PC Ecosystem & Compatibility
This is a professional-grade, Windows-native instrument. It is not compatible with iOS/iPad. Calibration, data processing, and all third-party simulation software require a dedicated, high-performance Windows PC to ensure accurate, real-time results.
System Specifications (Minimum Requirements):
-
Operating System: Windows 10 or 11 (64-bit only).
-
Processor (CPU): Intel i5-8400 or AMD Ryzen 5 1600 (or better).
-
Memory (RAM): 8 GB.
-
Graphics Card (GPU): NVIDIA GeForce GTX 1060 (6 GB VRAM) or AMD Radeon RX 580.
-
Hard Drive Space: At least 50 GB free space (SSD recommended).
-
Connectivity: Ethernet port (recommended for stability) or stable Wi-Fi connection.
Neo-E Integrated Software Features
-
Software Included: Includes Murlie & MurlieX (PC). No subscription required. Includes 20 golf courses and full shot analysis.
-
Third-Party Ready: Fully compatible with GSPro, E6 Apex, E6 Connect, and Creative Golf (PC versions).
-
Pro Connectivity: Dual Wi-Fi/Ethernet for stable data. Supports 3-camera swing analysis via standard USB cameras.
Product Specifications
| Category | Details |
| Model Name | NEO-E |
| Accuracy Level | Comparable to GC Quad |
| Size / Weight | 6.3" x 12.1" x 5.8" / 5.95 lb |
| Battery Life | 5 Hours |
| Durability | IP65 Rated (Water/Dust Proof) & Urethane Exterior |
| Connection | Dual-band Bluetooth, Wi-Fi, and Ethernet |
| Operating Temp | 14℉ to 113℉ |
NEO-E Measured Metrics
The NEO-E captures a data suite almost equivalent to a Foresight GC Quad:
| Category | Measured Data Point | Description |
| Ball & Launch | Carry Distance | Total flight distance through the air. |
| Total Distance | Total distance, including initial run. | |
| Run Distance | Distance the ball rolls after impact. | |
| Side Distance | Lateral deviation from target line at landing. | |
| Side Total | Lateral deviation from target line after total distance. | |
| Apex | Maximum height of the ball flight. | |
| Apex Distance | Distance from impact when apex is reached. | |
| Flight Time | Total time from impact to landing. | |
| Flight Type | General classification of trajectory. | |
| Landing Angle | Angle at which the ball hits the ground. | |
| Ball Speed | Initial velocity of the ball upon impact. | |
| Launch Angle | Vertical angle of initial ball flight. | |
| Launch Direction | Horizontal direction of initial ball flight. | |
| Total Spin (Spin Rate) | Overall revolutions per minute (RPM). | |
| Spin Axis | The angle of the ball's rotation. | |
| Side Spin | Horizontal spin (RPM) affecting draw/fade. | |
| Back Spin | Vertical spin (RPM) affecting lift and stop. | |
| Club Metrics | Club Speed | Velocity of the club head just before impact. |
| Club Path | Direction the club travels relative to the target line. | |
| Attack Angle | The vertical angle the club approaches the ball. | |
| Dynamic Loft | The usable loft of the club face at impact. | |
| Face to Path | Angle of the club face relative to the club path. | |
| Horizontal Impact | Where the ball hits the face horizontally. | |
| Vertical Impact | Where the ball hits the face vertically. | |
| Smash Factor (Efficiency) | The ratio of ball speed to club speed. |

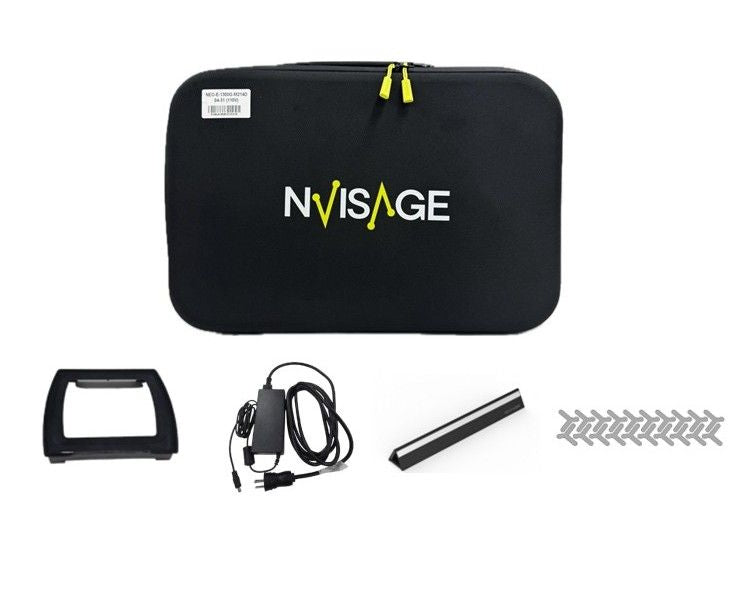

What’s Included
-
NEO-E Launch Monitor Unit
-
MURLIE Software Suite: Professional-grade integrated software with No Subscription required.
-
Heavy-Duty Outdoor Stand
-
Alignment Tool/Stick
-
Club Head Tracking Stickers (20pk)
-
Power Adapter (110v)
-
Custom-Fitted Carry Bag
-
User Manual:
Important Note: To maintain uninterrupted analysis, data is displayed immediately after shot recognition and remains on-screen until your next swing is detected.
NVISAGE NEO-E Further Information
Processing: 1-2 Business Days (Quality check & packaging).
Shipping: 3-5 Business Days via UPS/FedEx.
Total Delivery: Expect your order within 4-7 Business Days.
Signature Required: For security, an adult signature is required upon delivery.
1. Critical Space Requirements
- Placement: The NEO-E is a portable, floor-based unit that sits beside the golfer.
- Distance from Tee: The unit must be placed exactly 14.2 inches away from the ball.
- Ready Zone (Strike Zone): The area where the ball is recognized measures 12.6 inches (Width) x 9.4 inches (Depth).
- Total Installation Footprint: A minimum space of 15.8" x 29.4" x 12.1" is required for the unit and its operational zone.
2. Setup & Installation Steps
To ensure proper functionality, follow these steps in order:
- Alignment: Place the product on a flat surface. Use the provided alignment tool at your predicted impact point to calibrate the target line (supports up to a 15° adjustment).
- Club Stickers: To collect club data (path, face angle, etc.), you must attach the provided "Y" stickers to your clubheads. Note: The unit can track ball data without stickers, but club analysis requires them.
- Left/Right Handed Mode: Access Settings > General > L/R to specify your dominant hand. The Ready Zone on the screen will adjust automatically based on this selection.
3. Connectivity & PC Requirements
The NEO-E does not support Mac or Linux; it requires a Windows environment.
- Minimum Specs: Intel i5 8400, 8GB RAM, and a GeForce GTX 1060.
- Recommended Specs: Intel i7 (10th Gen+), 16GB RAM, and NVIDIA RTX 30 series or higher.
- Connection Methods:Wi-Fi: Used for internet and connecting to software/smartphones.Ethernet: Recommended for stable connection to a PC.
4. Must-Know Environmental Information
- Lighting & Interference: Avoid infrared-interfering lights indoors. Ensure no reflective surfaces like mirrors or glass are in the camera's view, as they cause inaccurate measurements.
- Outdoor Use: Use the provided Outdoor Stand to prevent contamination from grass and improve ball recognition. Avoid using the unit on long grass or facing direct sunrise/sunset.
- Ball Type: For optimal performance, use premium balls with logos. Avoid colored balls, worn balls, or white balls without logos.
- Battery: The unit provides a minimum of 5 hours of wireless battery life. Always use the provided 24V DC adapter for charging to avoid damage.
5. Operation Status (LED Guide)
- Searching for Ball: Blinking Red.
- Ball Ready: Stable Green.
- Shot Recognized: Blinking Blue.
- Low Battery (10%): Blinking Orange.
