General Information

• Model: 4K400STX
• Display Type: DLP Projector
• Lamp Power: 240 Watts

Image Performance

• Native Resolution: 3840 x 2160 (4K UHD)
• Image Brightness: 4,000 ANSI Lumens
• Image Contrast Ratio: 1,000,000:1
• Image Aspect Ratio: 16:9 and 4:3 compatible
• Minimum Image Size: 36.43 Inches
• Maximum Image Size: 300.53 Inches

Optical & Lens Specs

• Minimum Throw Distance: 1.31 ft (15.75 In)
• Maximum Throw Distance:
  10.83 ft (129.92 In)
• Zoom Type: Fixed
• Optical Zoom: 1x

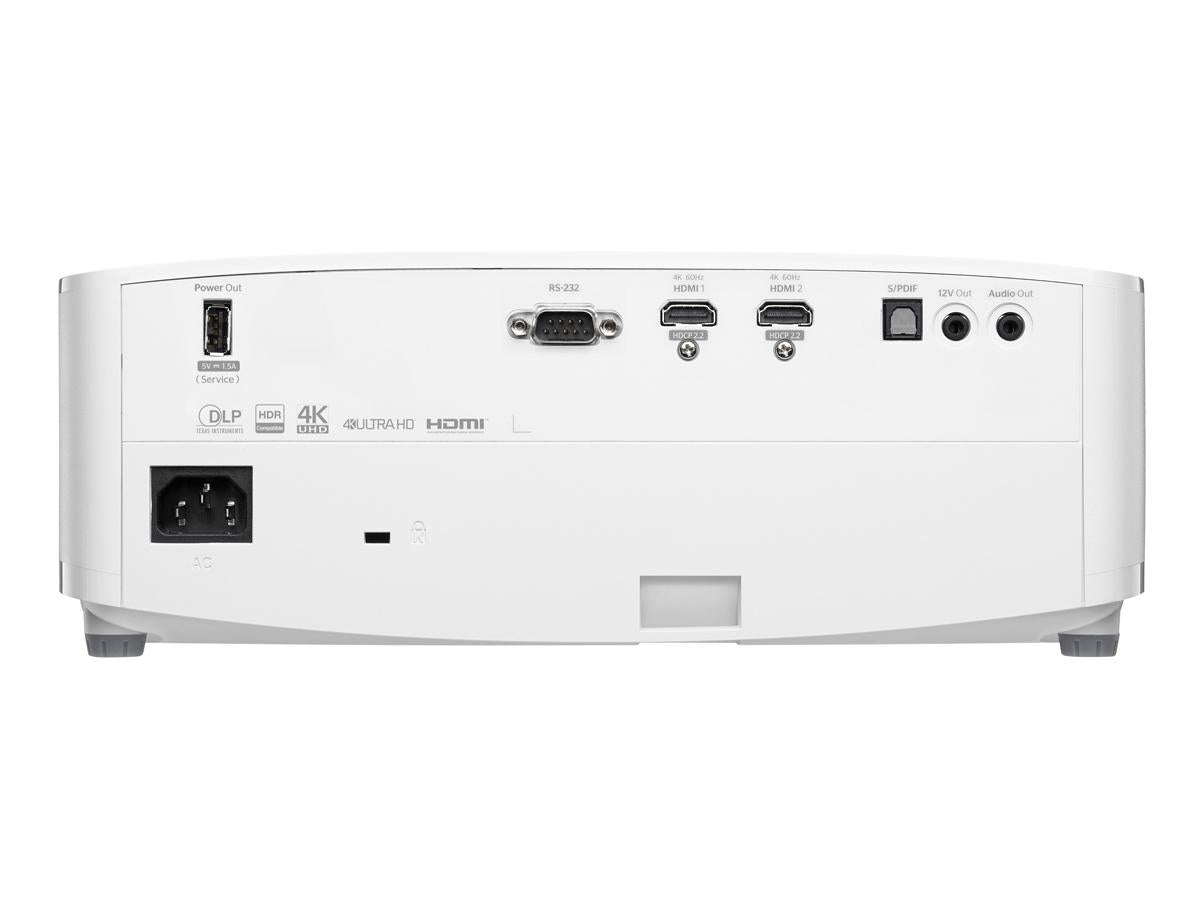

Connectivity & Audio

• Video Inputs: 2 x HDMI 2.0
• Audio Outputs: 1 x 3.5mm Audio Jack, 1 x S/PDIF (Digital Audio)
• Power Output: 1 x USB-A Power (1.5A)
• System Control: 1 x RS232, 1 x 12V Trigger
• Integrated Speakers: Yes

Power Requirements

• Power Supply Type: Internal Power Supply
• Voltage Required: 100V ~ 240V, 50 ~ 60Hz
• Operational Power Consumption: 220 Watts
• Standby Power Consumption: 0.5 Watts

Dimensions & Weight

• Width: 12.4 Inches
• Depth: 10.63 Inches
• Height: 4.65 Inches
• Weight: 8.7 lbs.

Compliance & Special Features

• Country of Origin (COO): Available upon inquiry
• TAA Compliance: Available upon inquiry
• UNSPSC Code: 45111609

1. What is Aspect Ratio, and why does it matter?

Aspect Ratio is the relationship between the width and height of your image.

• 4:3 Ratio: Produces a more "square" image. Best for rooms with high ceilings but limited width. To find your width, multiply your screen height by 1.25.
• 16:9 Ratio: The standard "Widescreen" look (HDTV). Best for wider enclosures like the Guardian Bay™ Commercial size. To find your width, multiply height by 1.78.
• 16:10 Ratio: A professional compromise often used in high-end simulators. Multiply height by 1.60.

How far away from the screen should my projector be?

Each projector has a specific throw ratio, which is an expression of image width divided by distance from the screen. For example a projector with a 0.5 throw ratio can produce a 10ft wide image from 5 feet. For Golf simulation we recommend short throw projectors with a throw ratio of 0.5 to 0.7 as they place the projector close enough to the screen so that the golfer will not block the image.

Throw distance from the screen can be calculated for other projectors using online projector throw calculators for your projector model.

How can I protect my projector from golf balls, club strikes, or other hits?

The Projector Shield from Turnkey Pro Studio is designed to do just that! Optic Cage™ Projector Floor Enclosure Isolates and Protects Your Golf Simulator Projector from Getting Hit by Golf Balls or Clubs. Check it out here:

You can find it in Frameworks under Simulator Accesories menu.

Pro Tip: For the sharpest image, always match your PC software settings (GSPro, Uneekor, etc.) to your projector's native resolution.
