ImpactArmor™ Synthetic Wall & Ceiling Protection Tiles
The Market’s Thickest Defense: Zero Wall Damage, Zero Dangerous Ricochets
Standard 9mm wall felt can't stop high-velocity shanks or steep wedge strikes from punching holes in your drywall and damaging expensive gear. ImpactArmor™ Protection Tiles deliver up to 3x the thickness of standard pads, absorbing hard ball strikes on contact and stopping dangerous rebounds in their tracks.
Flexible DIY Installation: Built for Any Wall or Ceiling
Built with a hardware-ready, non-adhesive backing, these tiles give you complete DIY freedom to choose the best hold for your specific space. Instead of relying on weak peel-and-stick tape that sags or fails over time, you can secure them properly to any surface—using screws for drywall and ceilings, construction adhesive for garage concrete, or heavy-duty Velcro for quick, removable setups.
What’s Included & Product Specifications
What’s Included in the Box:
-
(10) ImpactArmor™ High-Density Synthetic Protection Panels
(Bare-back, non-adhesive design; mounting hardware not included).
-
Coverage Options (Per 10-Pack):
-
24" × 24" Pack: Covers 40 sq. ft. total (4 sq. ft. per tile)
-
24" × 48" Pack: Covers 80 sq. ft. total (8 sq. ft. per tile)
-
-
Thickness Options:
-
1/2" Core (12.7 mm): Dense impact defense—40% thicker than standard commercial wall felt.
-
1" Core (25.4 mm): Maximum ballistic barrier—nearly 3x thicker than generic 9mm acoustic panels.
-
-
Edge Style Options:
-
Square Edge: Sits flush edge-to-edge for a smooth, continuous, seamless finish.
-

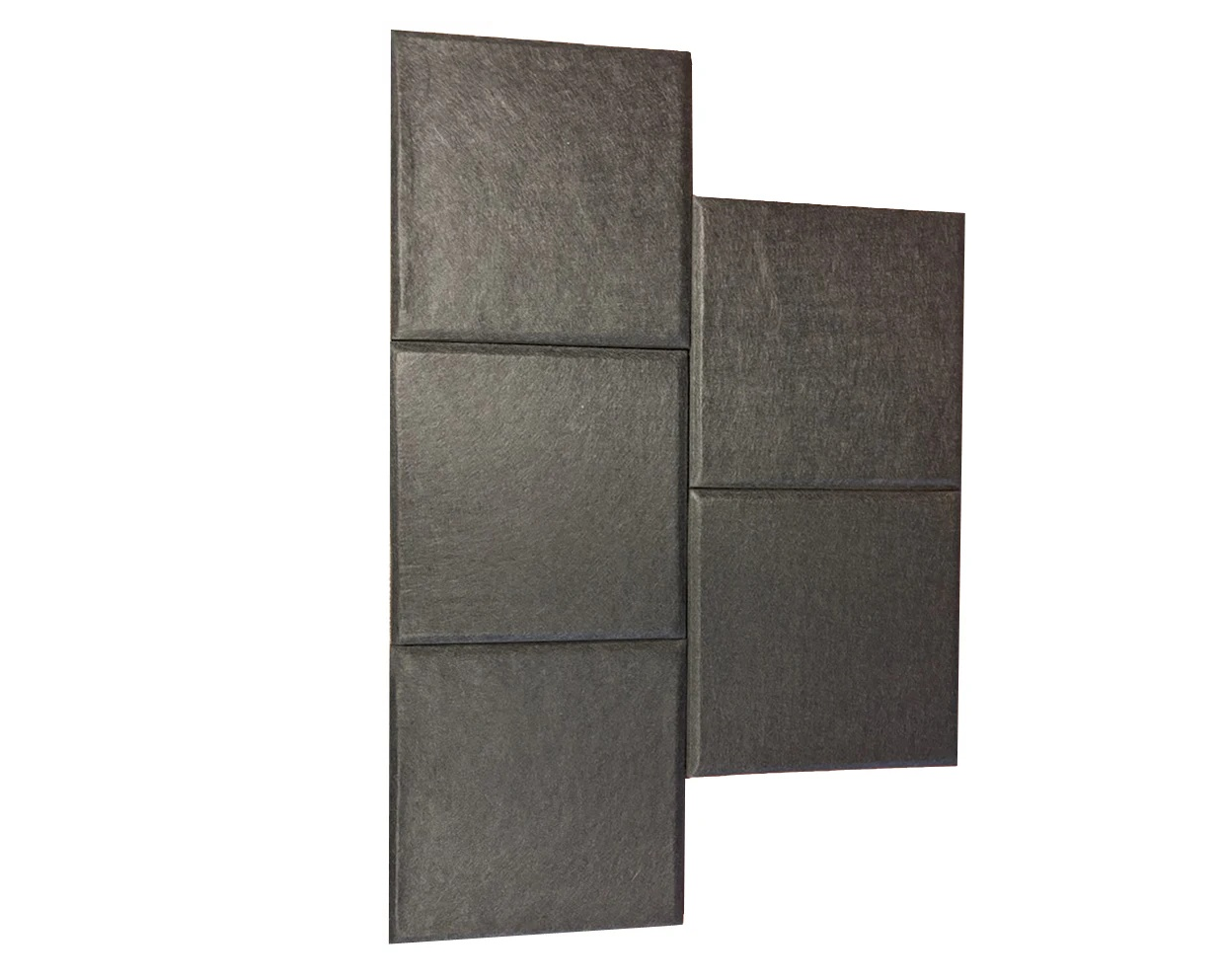

Beveled Edge: Angled perimeter borders create a defined, modern 3D geometric grid.
-
-
Core Material:
-
High-density synthetic fibrous core engineered for kinetic energy absorption, zero ricochet, and acoustic sound dampening.
-
Whats not Included
- Mounting Hardware Not Included:
These tile packs do not come with pre-applied adhesive or mounting hardware. Generic peel-and-stick backings and weak factory Velcro routinely sag, peel, or fail under the shockwave of 150+ mph ball strikes - especially overhead on ceilings. Leaving our tiles hardware-ready gives you total DIY control to use the exact, professional-grade fasteners suited to your specific wall material, ensuring a rock-solid hold that will never fall down mid-swing.
Key Features
-
Maximum Impact & Ricochet Control: Absorbs high-speed strikes to deaden kinetic energy, eliminate dangerous rebounds, and dampen loud impact echo in enclosed rooms.
-
Heavy-Duty Wall & Ceiling Defense: Available in 1/2" and 1" dense shock-absorbing cores to prevent high wedges, driver strikes, and shanked balls from denting or puncturing sheetrock.
-
Flexible DIY Installation: You choose the best installation method for your specific wall surface - mount cleanly to drywall, finished studs, garage concrete, masonry, or ceiling joists without needing expensive custom z-clips or wood framing.
-
Architectural Seamless Look: Precision machine-cut panels align perfectly edge-to-edge for a clean, professional simulator enclosure rather than bulky, mismatched gym pads.
4 Easy DIY Mounting Options
Choose the fastening method engineered for your specific room and wall type:
-
#10 × 1" Black Truss Head Screws (Best for Ceilings & Direct Shank Zones): The most secure mechanical hold available. The low-profile black heads sink flush and blend invisibly into the dark foam surface.
-
Heavy-Duty Construction Adhesive (Best for Concrete & Permanent Walls): Delivers a clean, hardware-free studio look. Apply a bead to the back perimeter and center to bond permanently to drywall, plywood, or bare masonry.
-
Industrial Double-Sided Tape (Best for Fast Wall Setups): Use commercial-grade tape (such as 3M VHB) for a quick, mess-free installation on smooth, finished side walls.
-
Heavy-Duty Adhesive Velcro Strips (Best for Removable Side Walls): Provides the flexibility to adjust panels as you work or easily swap out individual tiles in the future.
Industry Comparison
| Feature | ImpactArmor™ Tiles | Generic Carpet Tiles (9mm) |
| Thickness | 1/2" to 1" (Up to 3x Thicker) | 9mm (Thin Felt Layer) |
| Impact Protection | High-Density Shock Core | Minimal; Prone to Drywall Denting |
| Edge Styles | Square or Beveled | Flat Raw Edges Only |
| Installation System | Surface-Adaptive DIY (Hardware-ready, bare-back design engineered for custom attachment to drywall, concrete, masonry, wood, or ceiling joists) | Basic Adhesive Only |
Expert Support & Custom Builds
Need help calculating tile packs, choosing the right fasteners for your wall type, or verifying room clearances? Send over your dimensions or a quick photo of your space—our simulator specialists will help you plan the perfect setup.
-
Text an Expert: 1-402-577-0167
-
Email Us: sales@turnkeyprostudios.com
Fast Support: We review layouts and respond to all inquiries within 24 hours.
Finish Your Setup
Frecuently bought together
ImpactArmor™ Golf Simulator Wall Padding Tiles Further Information
Processing: 3-5 Business Days (Quality check & packaging).
Shipping: 3-5 Business Days via FedEx.
Total Delivery: Expect your order within 6-10 Business Days.
Free Shipping
Adult Signature Required upon orders over $1000.00
Q: What exactly are Turnkey Pro Studios padding tiles made of?
A: Our tiles are crafted from a specialized, high-grade solid synthetic material. Unlike cheap open-cell foam or heavy rubber, this synthetic matrix provides a rigid yet forgiving texture. It is engineered specifically to absorb the high velocity of golf balls without cracking, breaking, or losing its shape over time.
Q: Can these panels be installed on both the walls and the ceiling?
A: Yes! Because our panels are incredibly lightweight and rigid, they are perfectly suited for both wall and ceiling applications. They will not sag or pull down under their own weight when properly installed on a ceiling.
Q: How do I choose between the 1/2" and 1" thickness?
A:
- 1/2" Thickness: Ideal for a sleek, low-profile look, budget-conscious builds, or ceiling areas where direct, full-force impacts are less frequent.
- 1" Thickness: Recommended for primary impact zones (the walls directly adjacent to your screen) or for high-swing-speed players who want maximum energy absorption and reassurance against errant shots.
Aesthetics & Design
Q: Why do these look better than other golf simulator pads on the market?
A: Most traditional padding options are manually upholstered, which makes them look like bulky high school gym mats or puffy boat cushions with uneven, wavy seams. Turnkey Pro Studios tiles are precision machine-cut. This guarantees absolute consistency in size and shape, allowing them to lock together flawlessly to create a perfectly geometric, modern lounge aesthetic.
Q: What are "beveled edges" and should I get them?
A: Beveled edges feature a slight downward slope along the perimeter of the tile rather than a sharp 90-degree block edge. Choosing the optional beveled edges adds a high-end, premium dimensional texture to your walls, creating clean shadows and a highly professional, finished look.
Installation & Customization
Q: Do I need to build a wooden frame, or buy Z-clips and French cleats?
A: Not at all. One of the biggest advantages of our system is that no complicated framework or heavy hardware is required. The tiles are designed to install directly onto your flat, existing drywall, saving you massive amounts of time, labor, and money during setup.
Q: My room has specific dimensions. Can these tiles be cut to fit?
A: Absolutely. The synthetic material is incredibly easy to work with. You can cleanly trim panels to fit your exact wall width, flooring line, or around outlets using a standard hacksaw or jigsaw. If you need to custom-bevel a freshly cut edge to match the rest of your layout, you can easily do so using a pair of sharp scissors.
Q: What is the recommended way to mount them?
A: We support four distinct installation methods depending on your permanent or temporary needs:
- #10 x 1" Black Truss Head Screws (Recommended for Ceilings & Ultimate Security): Fastens directly through the tile into drywall/studs. The black heads blend invisibly into our dark tiles.
- Construction Adhesive: Ideal for a completely flush, permanent look with absolutely zero visible hardware.
- Industrial Double-Sided Tape (e.g., 3M): A fast, heavy-duty, permanent solution. (Recommended for wall applications only).
- Adhesive Velcro Dots or Tape: Perfect if your walls are clean and primed/painted. This allows you to micro-adjust panels during installation or easily swap out a tile in the future. (Recommended for wall applications only).
Durability & Maintenance
Q: Will the panels dent or break if hit by a driver shot at close range?
A: No. The synthetic material is structurally engineered for extreme energy attenuation. It deforms just enough to safely "kill" the ball's momentum and prevent dangerous ricochets, then instantly springs back to its original shape without cracking or leaving permanent deep dimple dents.
Q: What happens if a tile gets heavily soiled or somehow damaged over time?
A: Because our system is completely modular, you never have to replace an entire wall. You simply pop out or unscrew the single affected tile and drop a clean, identical replacement panel right into its place. If you used the Velcro installation method, this takes less than 30 seconds.
