These premium computers are built to oder and can take 3-5 days to fulfill.

Tracking: A tracking number will be emailed to you automatically the moment it ships.

Key Product Features

• High-Performance Architecture: Featuring the Intel Core Ultra 5 225F processor and NVIDIA RTX 5070 graphics card, this desktop delivers the processing power and fluid graphics needed for resource-heavy simulation software.

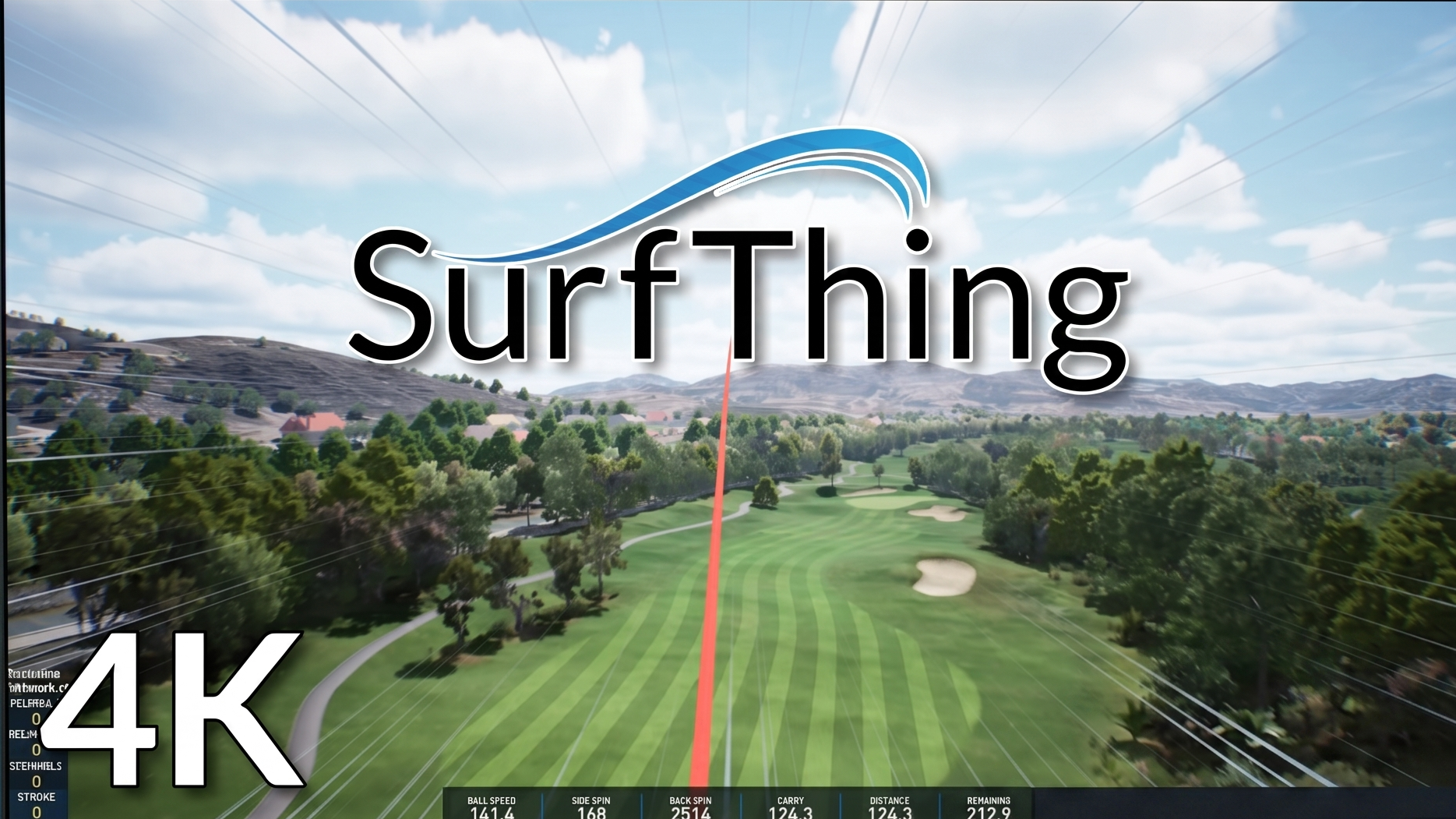

• 4K Display Compatibility: Engineered to output natively to 4K projectors and displays right out of the box, ensuring sharp visuals and real-time ball flight rendering.
• High-Speed Memory & Storage: Built with 32GB of DDR5 RAM and a 2TB Gen4 NVMe SSD to eliminate system bottlenecking, reduce software load times, and provide ample storage for high-resolution course files.
• Comprehensive Studio Connectivity: Outfitted with an extensive selection of front and rear I/O ports—including multiple high-speed USB ports, LAN, audio jacks, and high-gain WiFi—to easily manage multiple launch monitors, cameras, and peripherals.
• Efficient Thermal Management: Equipped with a dual 120mm fan cooling configuration to maintain low component temperatures and quiet operation during extended tracking and gaming sessions.
• Custom Software Pre-Configuration: We offer full pre-installation and activation of your chosen golf simulation platform, ensuring the system arrives configured to your unique studio environment.
• Space-Efficient Chassis: Designed with clean, professional aesthetics and a compact footprint that fits seamlessly into home simulator spaces or commercial setups.

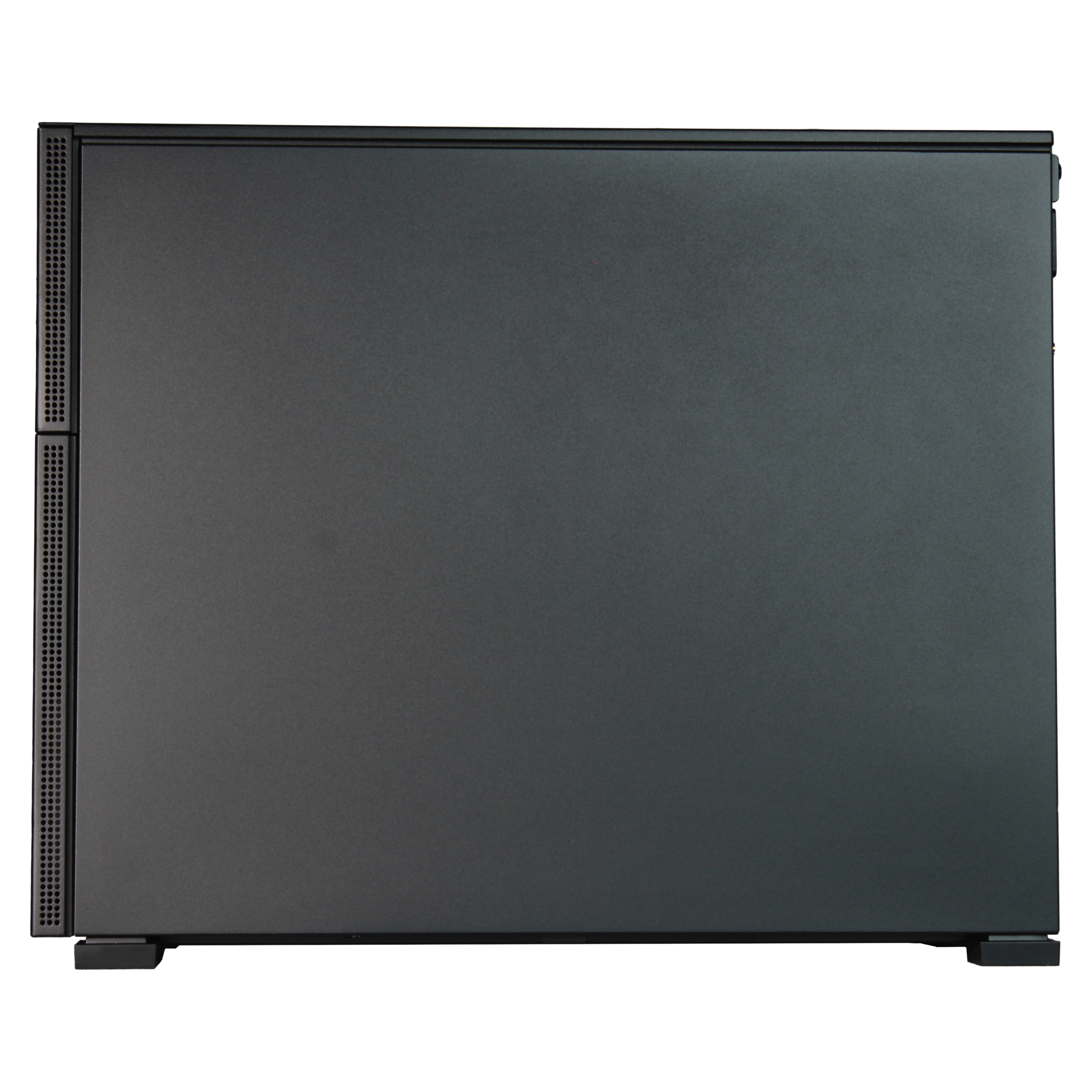

Case Dimensions

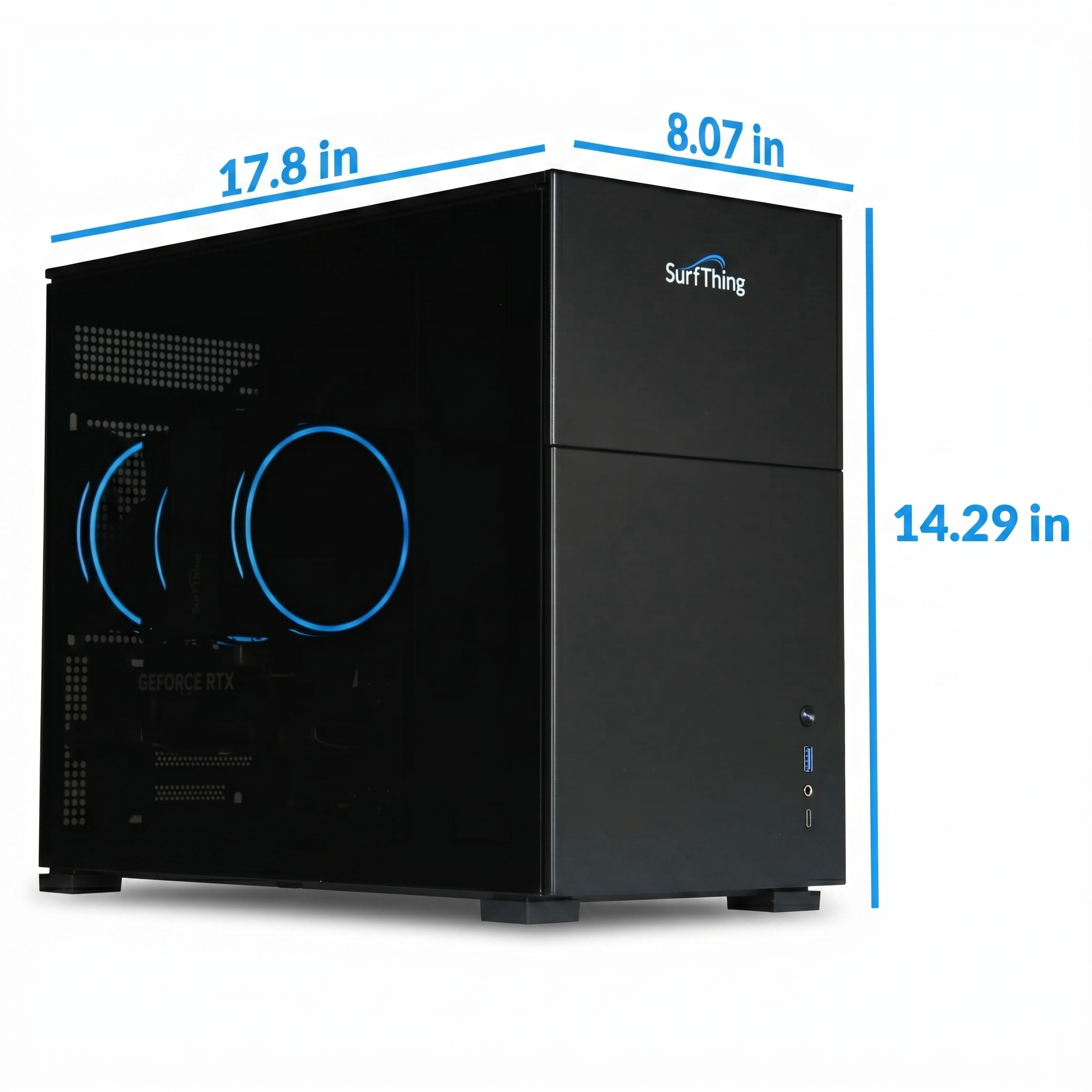

• Dimensions: 8.07"(W) x 14.29"(H) x 17.8"(D)
• Form Factor: Modern, Compact Case

Computer Specifications

• Processor (CPU): Intel Core Ultra 5 225F

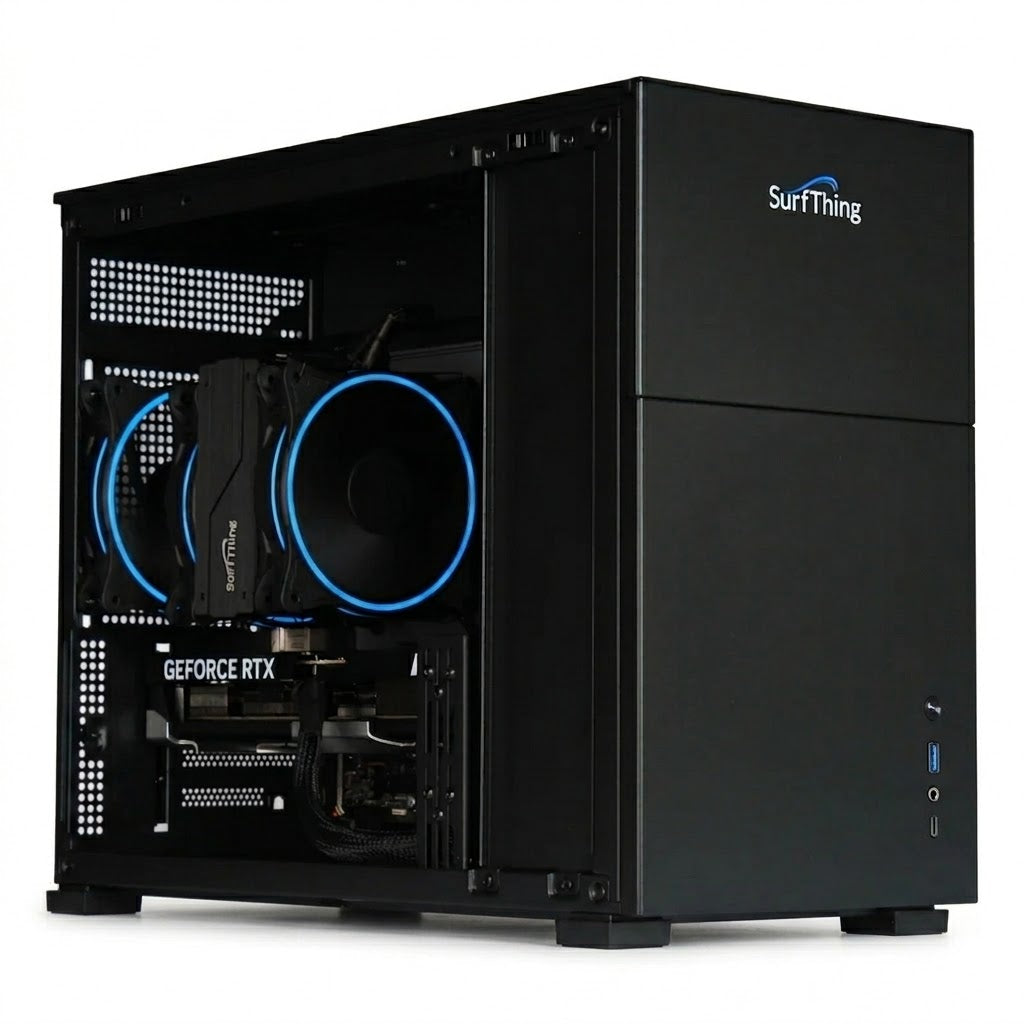

• Cooling: Dual Fan 120mm Air Cooler
• Graphics (GPU): NVIDIA GeForce RTX 5070 12GB GDDR7
• Memory (RAM): 32GB DDR5 6000MHz
• Storage (SSD): 2TB NVMe Gen4 SSD
• Connectivity: Bluetooth 5.3, WiFi 6E
• Operating System: Windows 11 Home

Connectivity Specifications

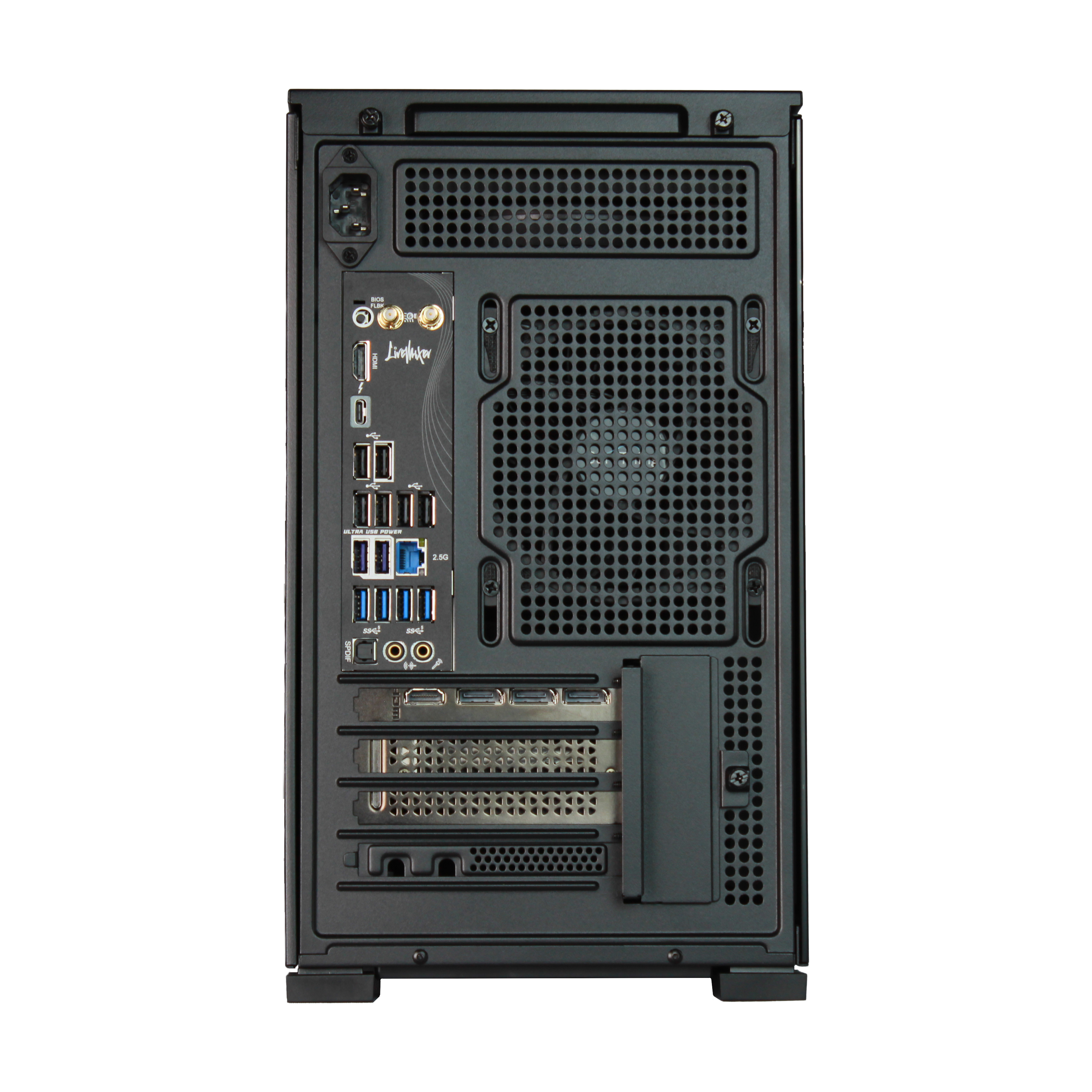

Rear I/O Ports:

• 1x USB Type-C® port (with Thunderbolt™ 4)
• 6x USB 3.2 Gen 1 ports (2 featuring Ultra USB Power)
• 6x USB 2.0 ports
• 1x 2.5G LAN port
• 2x WiFi Antenna connectors
• 1x Optical S/PDIF Out connector
• 2x Audio jacks
• *Note: An additional 1G Ethernet LAN Card is installed in the standard build. It is removed if an alternative expansion card is selected.

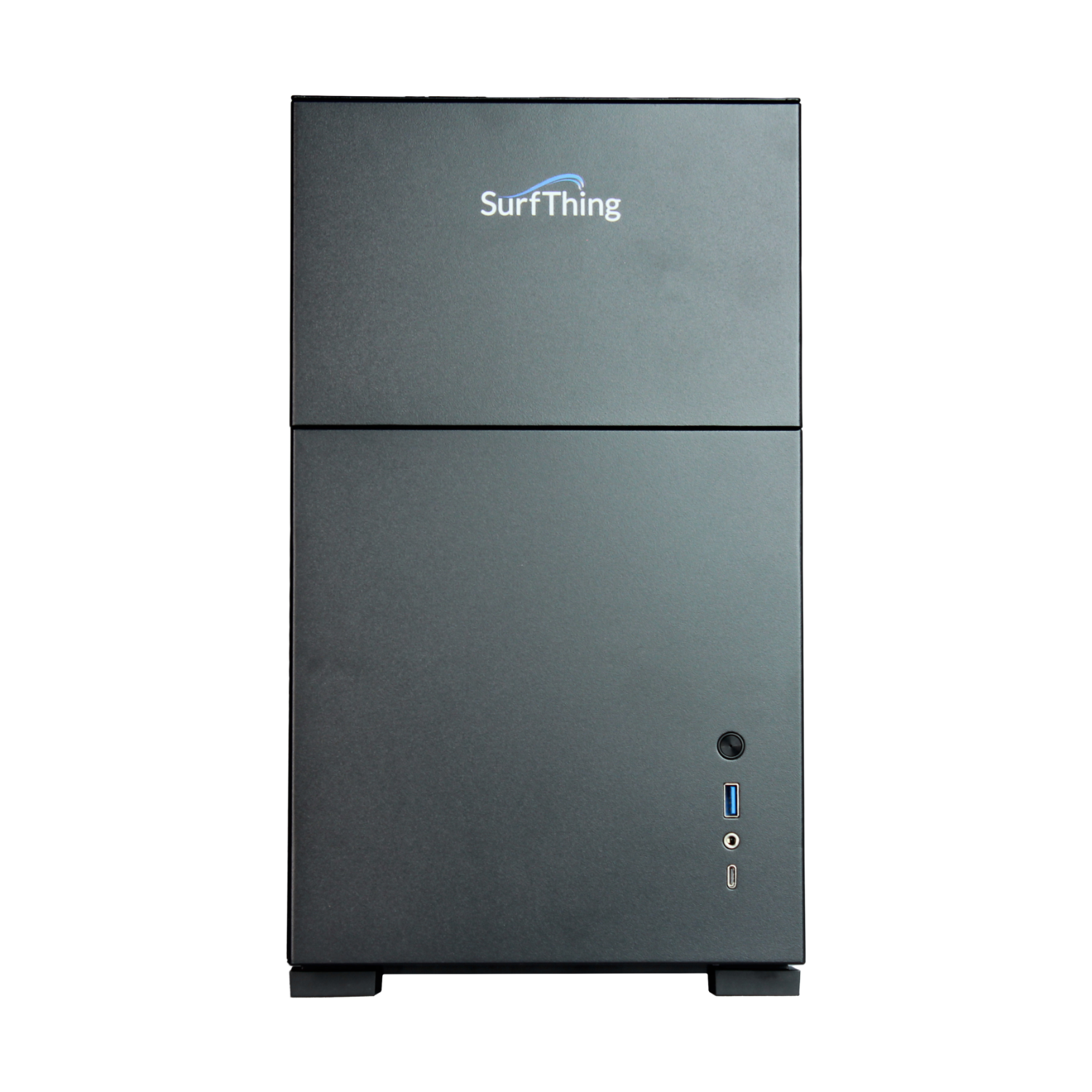

Front I/O Ports:

• 1x USB 3.2 Gen 1 5Gbps (Type-C)
• 1x USB 3.2 Gen 1 5Gbps (Type-A)
• 1x HD Audio Combo jack (CTIA – Speaker/Microphone)

Q: Will this desktop computer overheat or lag during long simulation sessions?
A: No. The SG3-5702 utilizes a spacious desktop chassis equipped with a dedicated Dual Fan 120mm Air Cooler. Unlike laptops that suffer from thermal throttling, this desktop configuration maintains stable component temperatures and consistent frame rates over extended, multi-hour tracking sessions.

Q: Can it run demanding golf software like GSPro, FSX Play, and E6 Connect?
A: Yes. The Intel Core Ultra 5 225F processor combined with the NVIDIA RTX 5070 12GB graphics card provides the processing power required to handle complex physics calculation engines and high-density turf rendering. It runs GSPro, E6 Connect, and FSX 2020 smoothly in 4K resolution, and is optimized for 1080p performance on FSX Play and Trackman.

Q: How do the computer, launch monitor, and projector integrate?

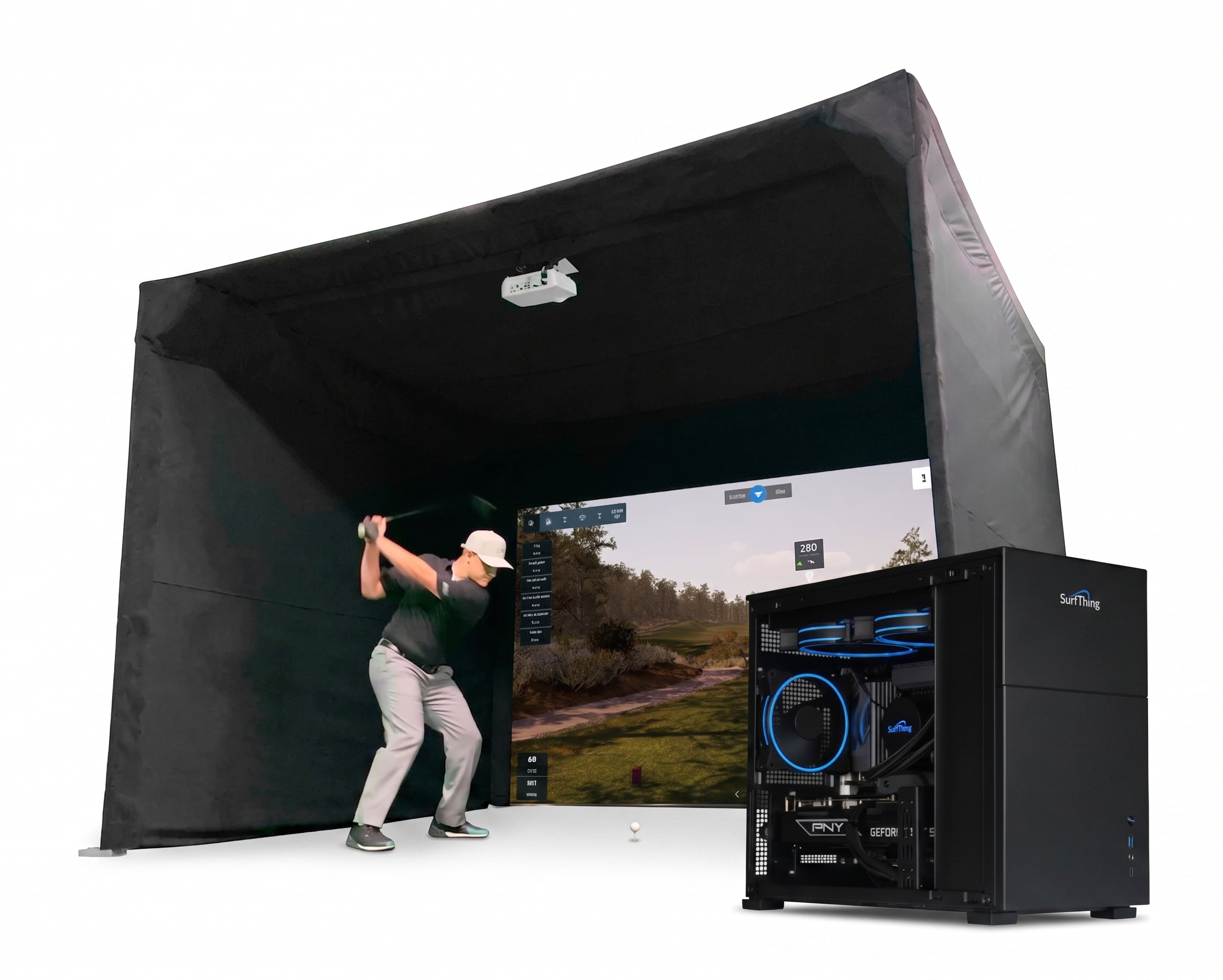

A: The desktop functions as the central system brain. Your launch monitor tracks club and ball metrics and sends that data to the PC. The PC processes the physics data in milliseconds and instantly projects the fluid 3D graphics onto your simulator screen.

Q: How do I connect my projector to this desktop?
A: You plug the projector's video cable (HDMI or DisplayPort) directly into the ports on the rear-mounted NVIDIA RTX 5070 dedicated graphics card. Connecting directly to the GPU ensures an uncompromised video signal with zero latency or conversion loss.

Q: Why does this PC feature two Ethernet (LAN) ports on the back?
A: The system comes equipped with a built-in 2.5G LAN port plus an additional 1G Ethernet LAN expansion card. This configuration is intentional for golf simulators: it allows you to use one port to hardwire your computer to the internet for online play and software updates, while using the second dedicated port to connect straight to an Ethernet-based overhead launch monitor (such as Uneekor or Trackman) without needing an external network switch.

Q: Will my launch monitor experience data or signal lag?

A: Not. The SurfThing SG3-5702 features fast data pipelines engineered specifically to eliminate any delay between your physical club impact and the virtual ball flight:

• Ceiling-Mounted Overhead Systems: Premium overhead systems - including the Foresight Falcon, Uneekor (EYE XO / EYE XO2), GolfJoy GR3, and nVisage N1 - plug directly into the computer's secondary, hardwired Gigabit LAN port for real-time shot processing with zero data bottlenecks.
• Floor-Based & Portable Units: Devices like Foresight Sports (GCQuad / GC3), Bushnell Launch Pro, and Full Swing KIT connect via the high-speed USB 3.2 Gen 1 ports. The computer’s dedicated "Ultra USB Power" ports provide a continuous, stable voltage stream to prevent data stutter or sudden device disconnects mid-session.

Q: Can I connect high-speed swing analysis cameras simultaneously?
A: Yes. The SG3-5702 features 14 total USB ports distributed across the front and rear of the chassis (including a USB Type-C port with Thunderbolt 4 and multiple USB 3.2 ports). You can connect a projector, launch monitor, touchscreen, and multiple high-speed cameras at the same time without requiring an external USB hub that could bottleneck data transmission.

Q: What is the purpose of the "Ultra USB Power" ports on the rear I/O?
A: Two of the rear USB 3.2 Gen 1 ports are specifically engineered to provide stable, continuous voltage. This prevents random device disconnects or signal drops when running high-draw simulator peripherals, such as bus-powered tracking hardware or high-frame-rate cameras.

Q: Does this PC support running a touchscreen monitor and a projector at the same time?
A: Yes. The NVIDIA RTX 5070 graphics card features multiple video outputs (HDMI and DisplayPort). This allows you to output the main simulation play screen to your projector while concurrently running a local touchscreen or secondary monitor for data display and system control.

Q: Apart from the computer, what data cables do I need to supply?
A: You only need two standard cables:

1. An HDMI or DisplayPort cable long enough to connect the computer's graphics card to your projector.
2. The data interface cable (USB or Ethernet) that came packaged with your specific launch monitor.

Q: I am unfamiliar with computer hardware and software installation. How difficult is the setup?
A: We make the entire process completely effortless. We only require to know what launch monitor of your preference you are using and the Golf Course software, and we take care of the pre-configuration of the computer for a smooth experience so you can focus on your swing. Our engineering team handles the software installation, maps your directories, and optimizes your graphics drivers before shipping, making your system 100% plug-and-play right out of the box.

Return & Cancellation Policy

We want your simulator setup to be seamless. If you need to return or cancel your order, here is exactly what you need to know:

30-Day Return Policy

• Window: You can return your product within 30 days of delivery.
• Condition: Items must be in like-new, undamaged condition with all original packaging, manuals, and accessories included.
• Restocking Fee: All outright returns are subject to a 20% restocking fee.
• Shipping: The customer is responsible for all return shipping costs.

Cancellations

• Within 24 Hours: Cancel within 24 hours of placing your order for a full refund. After 24 hours, cancellations incur a 3% merchant processing fee.
• After Shipping: Once an order has shipped, it cannot be canceled. It will be treated as a standard 30-day return (subject to return shipping costs and the 20% restocking fee).

How to Initiate a Return

1. Email Us: Send a return request to sales@turnkeyprostudios.com.
2. Include Details: Reference your order number and provide clear photos showing the condition of the items and original packaging.
3. Ship It Back: Once approved, we will provide you with the return shipping address or a pre-paid label (shipping costs deducted from your refund).
4. Refund: Your refund will be processed back to your original payment method after our warehouse receives and inspects the items.

Hardware Warranty Facilitation Policy

The hardware is backed by a 2-Year Limited Warranty from SurfThing, LLC. TurnKey Pro Studios acts as your direct intermediary, managing the entire troubleshooting, logistics, and repair process on your behalf to ensure a seamless experience.

During the two-year warranty period from the original date of purchase, if the system fails under normal operating conditions due to a defect in materials or workmanship, SurfThing will repair or replace the defective hardware. TurnKey Pro Studios will facilitate the fulfillment of these terms.

Return & Repair Process

1. Contact TurnKey Support: Reach out to TurnKey Pro Studios to initiate troubleshooting. We handle the communication with SurfThing to confirm the hardware issue.
2. Prepaid Shipping: If a repair is necessary, a prepaid return shipping label from SurfThing will be provided. If you lack original packaging, a suitable shipping box will be sent to you at no charge.
3. Secure Packaging: You must package the system securely to prevent transit damage.
4. Turnaround Time: SurfThing will complete the hardware repair and ship the system back within five (5) business days of receipt.

Data and Software

• Data Responsibility: If the hardware failure involves an SSD or storage device, SurfThing will make reasonable efforts to recover your data, but data recovery is not guaranteed. Regular backups to an external drive or cloud service are strongly recommended.
• Software Reinstallation: TurnKey Pro Studios will coordinate the restoration of any original simulation software pre-installed on the system at the time of initial shipment.

Exclusions

This limited warranty does not cover:

• Damage caused by misuse, negligence, physical modification, or unauthorized repair attempts.
• Cosmetic damage or normal wear and tear.
• Loss or corruption of user data.
• Software applications or configurations not originally installed by SurfThing or TurnKey Pro Studios.

Limitation of Liability & Transferability

Neither SurfThing, LLC nor TurnKey Pro Studios shall be liable for indirect, incidental, or consequential damages, including data loss, system downtime, or loss of business revenue. This warranty is valid only for the original purchaser and is non-transferable.
